Description

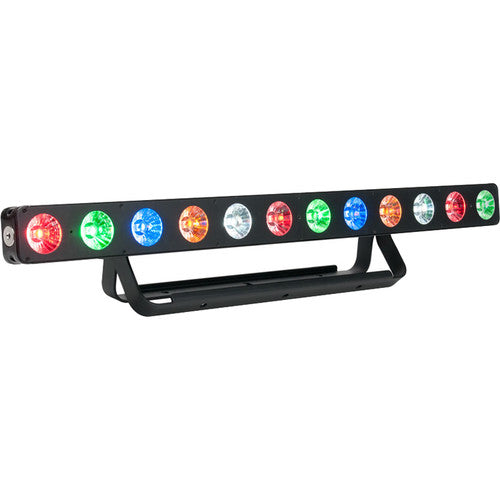

The SIXBAR 1000™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, IP65 Locking Power Cable, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Elation Professional SIXBAR 1000 Specs
| LED Source | 12 x 12 W 6-in-1 RGBAW+UV (red, green, blue, amber, white + ultraviolet) LEDs |
| LED Life Expectancy | 100,000 hours |
| Beam Angle | 30° |
| Photometric Data | 8500 lux (790 fc) at 3.3' / 1 m, 30° full-on 3660 lux (340 fc) at 6.6' / 2 m, 30° full-on 2040 lux (190 fc) at 9.8' / 3 m, 30° full-on 1290 lux (120 fc) at 13.1' / 4 m, 30° full-on 878 lux (82 fc) at 16.4' / 5, 30° full-on |
| UV Wavelength | UV: 395 nm |
| DMX Connectors | 3-pin XLR I/O 5-pin XLR I/O EtherCON RJ45 port I/O |
| Control | DMX Channel Modes: 6, 7, 11, 13, 36, 72, 75, and 79 Master/Slave mode Four-button control panel and LCD menu display, standalone mode RJ45 to DMX Art-Net and Kling-Net protocol support RDM (Remote Device Management) |
| Effects | Strobe and chase effects Individual LED control Variable and selectable dimming curves (0-100% electronic dimming) |
| Input Voltage | 110-240 VAC, 50/60 Hz, auto-switching |
| Power Connectors | 1 x powerCON, in 1 x powerCON, out |
| Power Linking | 6 units at 110 V 15 units at 240 V |
| Power Consumption | 145 W, maximum |
| Operating Temperature | 5 to 113°F / -15 to 45°C |
| Enclosure Material | Die-cast aluminum |
| Rigging | Integrated dual-rigging brackets |
| Approvals and Ratings | CE, cETLus, IP20 |
| Dimensions (L x W x H) | 35.4 x 8.1 x 6.1" / 900.0 x 206.4 x 155.0 mm (with included glare shield) |
| Weight | 16.0 lb / 7.3 kg |
