🇺🇸 ADJ ELEMENT HEX PC6 PAK ☎️Call for Quote

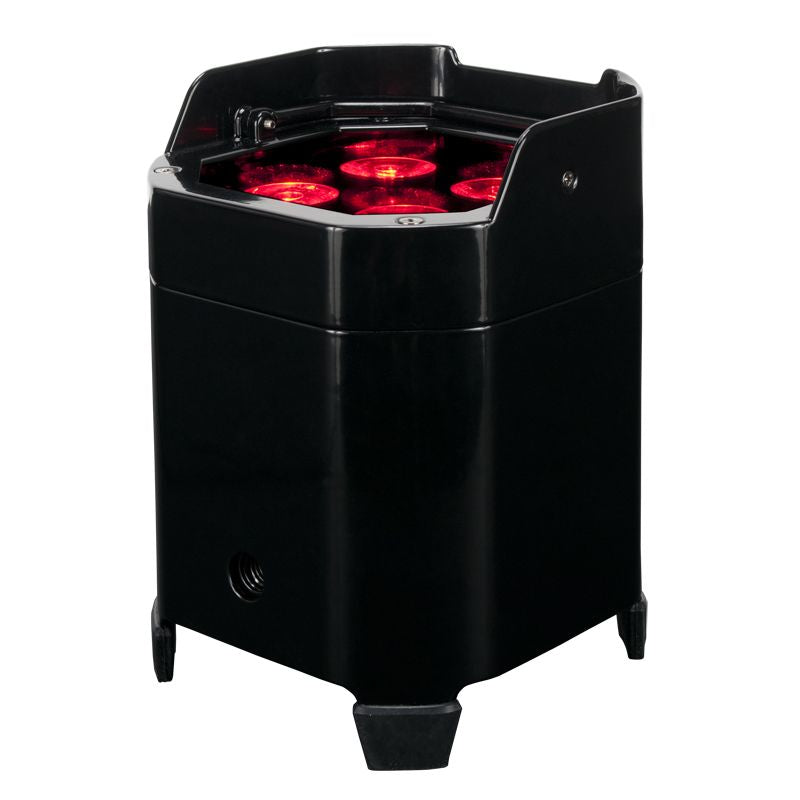

Element HEX

Optical:

• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684@ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

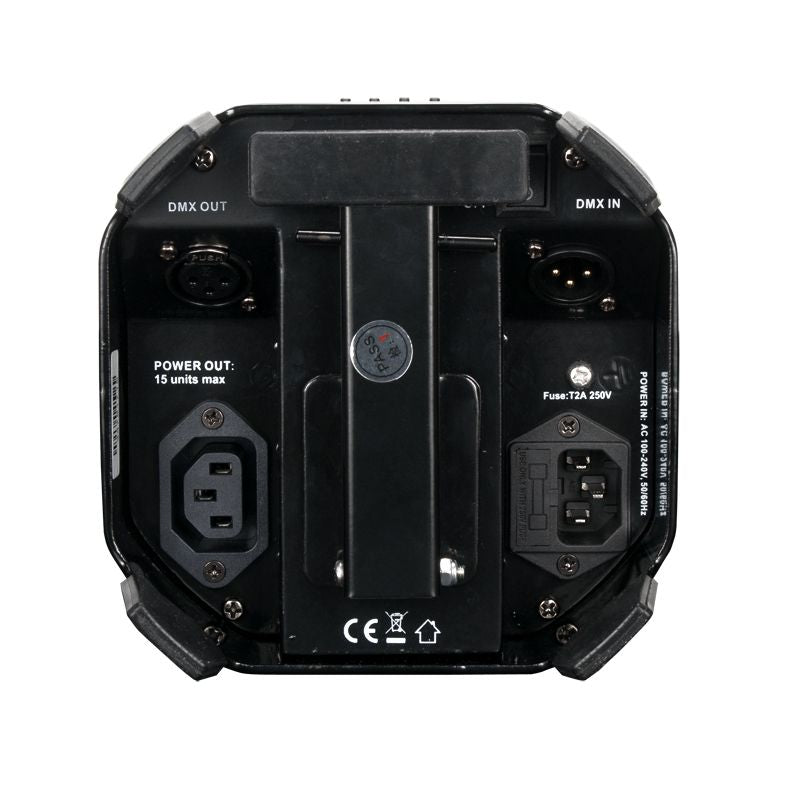

Connection:

• DMX:3-pin DMX In/Out

• With Wired Digital Communication Network

• IEC In/Out to power battery or daisy chain fixture

Control:

• Control protocol: WiFLY EXR DMX, 3-pin DMX
• 5 DMX Channel modes: 6, 7, 8, 11 & 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

• Built-in kickstand to angle figure while it’s on the floor

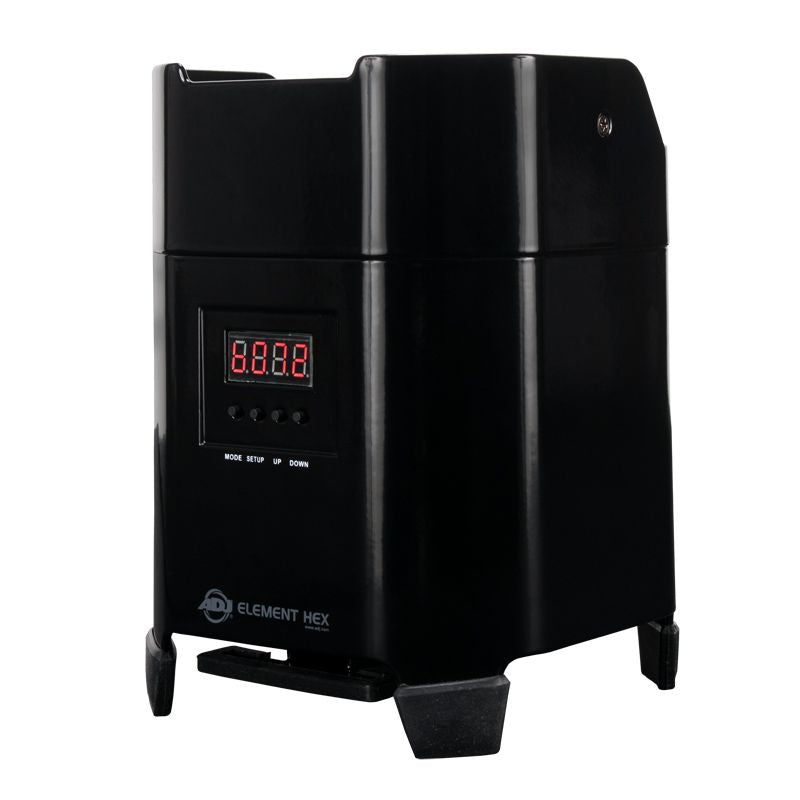

• 4-button DMX menu display on rear panel

• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 63 built-in Color Macros

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves

• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.

• Battery Voltage: 11.1V

• Battery Capacity: 6.6AH

• Total Lithium Ion Cells: 9 pieces

• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• ETL Approved
• CE Approved
• IP20 Indoor rated

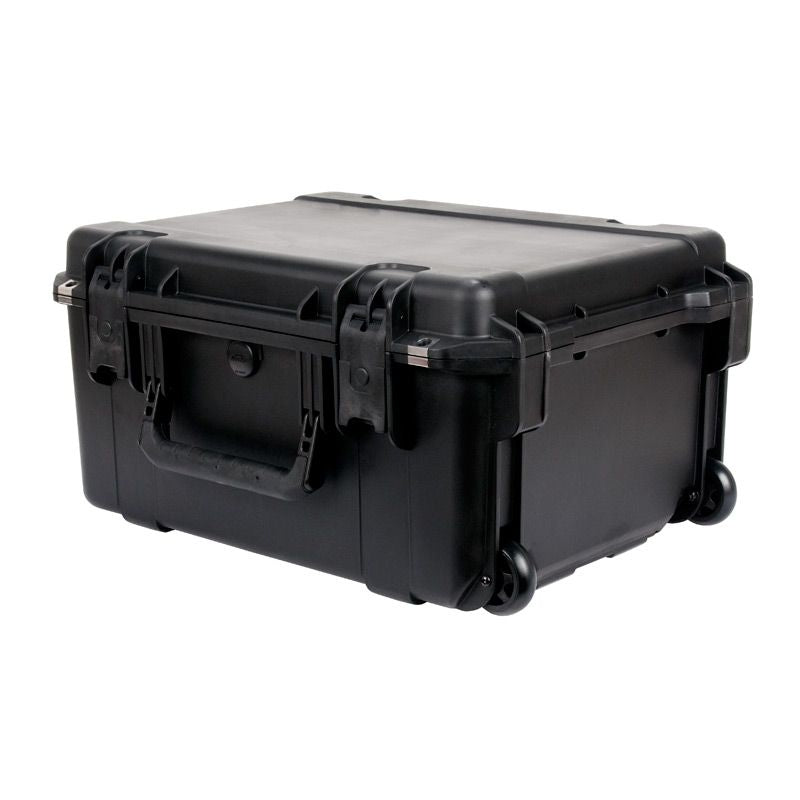

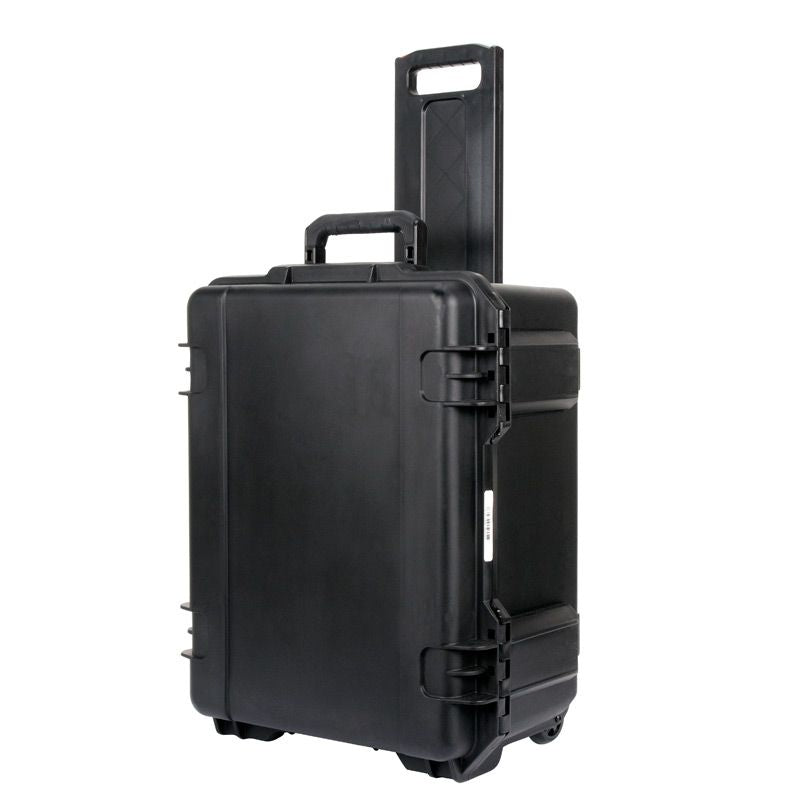

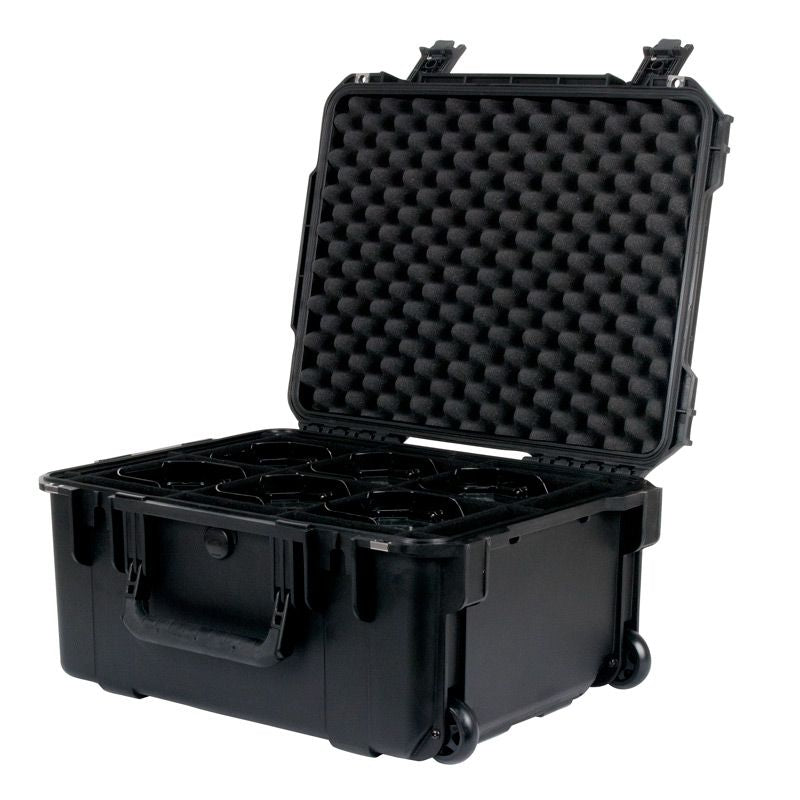

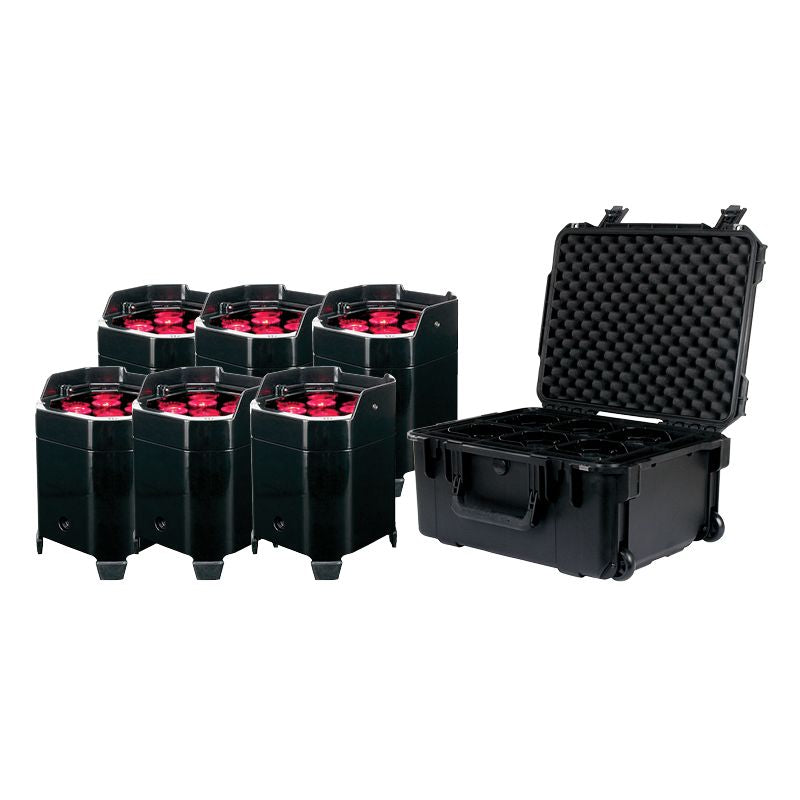

Element PC6

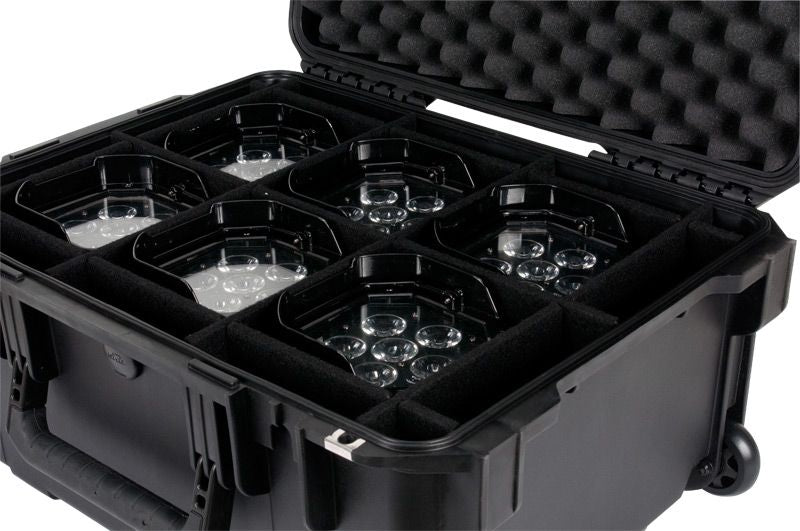

• Securely holds six Element Pars

• Waterproof and dust tight design (MIL-C-4150J)

• Molded-in hinge for added protection

• Trigger release latch system

• Snap-down rubber over-molded cushion grip handle

• Ambient pressure equalization valve (MIL-STD-648C)

• Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)

• Resistant to impact damage (MIL-STD-810F)

• Limited lifetime warranty

• Exterior Dimensions: 22.92” x 18.75” x 12” / 565x476x305mm

• Interior Dimensions: 20.5” x 15.5” x 10” / 520x394x254mm

• Weight (empty): 14.5 lbs. / 6.5kg.
