Description

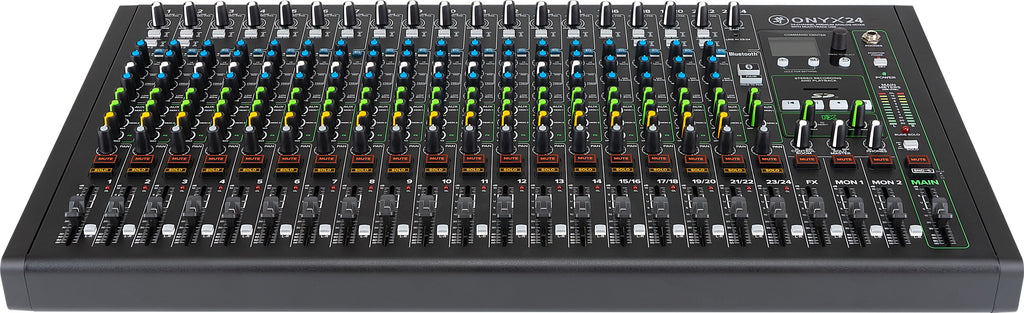

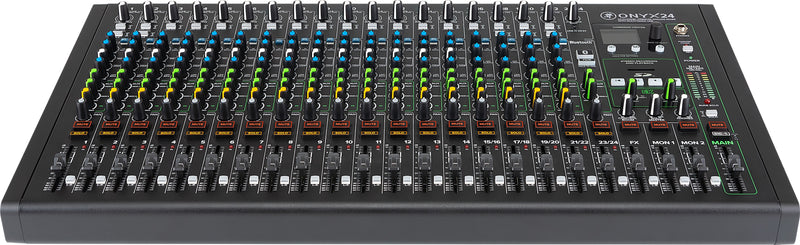

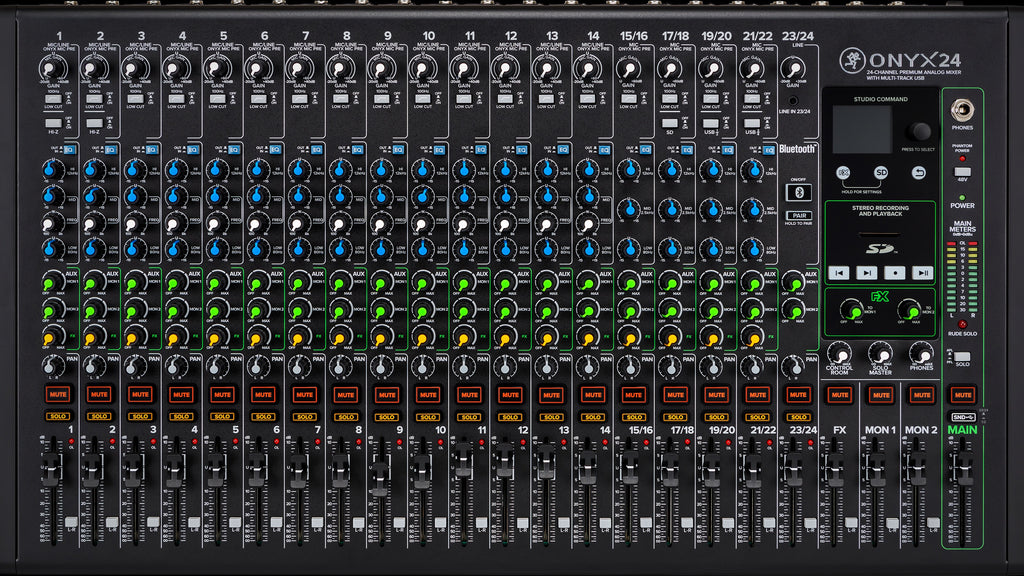

The Mackie Onyx24 24-Channel Premium Analog Mixer with USB is the ultimate compact solution for live audio, home recording, and content creation. 24-Bit / 96kHz multitrack recording, award-winning, high-gain Onyx mic preamps, and an end-to-end ultra-low-noise design deliver the sound quality professionals demand. Packed with features including powerful DSP effects, British-style Perkins EQ, full-color display, and integrated recording and playback from an SD card. The Onyx16 Premium Analog Mixer gives you the power you need to capture your best performance with pristine fidelity at home or on the go.
Classic Sound, Modern Performance
ā¢ 18 award-winning Onyx mic preamps provide up to 60dB of gain
ā¢ Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
ā¢ Analog/USB channel strips with flexible routing
ā¢ Legendary Perkins "British style" EQ with sweepable midrange offers classic sounds of the 60's and 70's
ā¢ Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ
Record and Playback via SD Card or USB
ā¢ High-resolution 96kHz / 24-bit multi-track recording to Mac/PC via USB
ā¢ Direct to SD card stereo recording and playback
ā¢ Channel-assignable 4-track USB return (2 stereo pairs)
ā¢ Send your Main Mix to USB via a dedicated switch
Studio Command - Powerful and Intuitive Full-Color Display and Single-Knob Interface
ā¢ Easy navigation of FX parameters, onboard SD recording and playback
ā¢ Visually browse files on the SD card via the built-in display
ā¢ Dedicated physical buttons for Previous, Next, Record, and Play/Pause
ā¢ Store up to 6 user FX presets for easy recall
Professional High-Resolution FX Processor
ā¢ Utilize built-in effects for live performances, streams, and beyond
ā¢ Reverb, delay, chorus, and more
ā¢ Dial in the perfect sound with adjustable parameters and dedicated EQ
Bluetooth Streaming - Go Wireless
ā¢ Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer
ā¢ Streamed audio can be routed to Aux Sends and the Main Mix
Powerful Mixing Toolkit
ā¢ 3-band Perkins EQ with On/Off hard bypass switch on all channels
ā¢ Hi-Z switches allows direct connection of guitars, basses, and other instruments
ā¢ 100Hz low-cut filter and 48V phantom power on all mic channels
ā¢ Stereo 1/8" input and Bluetooth streaming
ā¢ Stereo line inputs
ā¢ Aux/Monitor outputs with dedicated per-channel send control
ā¢ Dedicated Control Room outputs
ā¢ Headphone output with dedicated level control
ā¢ L/R Assign switch per channel
ā¢ 12-segment stereo meters
ā¢ Overload indicators on all channels
ā¢ PFL/AFL channel solo
ā¢ Footswitch input for FX Mute (footswitch not included)
Hit the Ground Running with Powerful Software and Plugins
ā¢ Pro Tools | First recording software and plugin bundle
ā¢ Musician Collection for Pro Tools | First, with 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
ā¢ Waveform OEM recording software and plugin bundle
ā¢ DAW Essentials Bundle for Waveform OEM, with 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter
Rugged Chassis and Professional Design
ā¢ Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback
ā¢ Sealed rotary encoder resists dust and grime
ā¢ Built-Like-A-Tank heavy steel chassis
ā¢ High-visibility, high-contrast controls
ā¢ Rugged, QuickGrip side cheeks offer convenient mobility and protection
Mackie ONYX24 Specs
Mixer
| Number of Analog Input Channels | 24 (14 Mono, 5 Stereo) |
| Number of Mic Preamps | 18 |
| Analog Output Channels | 2 x Stereo Master Output 2 x Stereo Control Room/Monitor Output 2 x Mono Aux Send Output 1 x Mono FX Send Output 1 x Stereo Headphone Output |
| Mix Routing | 1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup |
| Faders | 19 x 2.4" / 60Ā mm Input Channel Fader 1 x 2.4" / 60Ā mm FX Fader 2 x 2.4" / 60Ā mm Bus/Sub-Group Fader 1 x 2.4" / 60Ā mm Master Fader |
| Meters | Main Meter: 2 x 12-Segment LED |
| Meter Range | -30 dB to +20 dB Peak/Clip |
Signal Processing
| Gain/Trim Range | +60 dB |
| Input Pad | None |
| Input Polarity | None |
| Dynamic Processing | None |
| Sidechain Filters | None |
| EQ | 3-Band Semi-Parametric (Mono Channels) 3-Band Shelving/Notch/Peak (Stereo Channels) |
| EQ Parameters | Mono Channels: High: Ā±15 dB at 12 kHz Mid: Ā±15 dB at 100 Hz to 8 kHz Low: Ā±15 dB at 80 Hz Stereo Channels: High: Ā±15 dB at 12 kHz Mid: Ā±15 dB at 2.5 kHz Low: Ā±15 dB at 80 Hz |
| Filters | Input Channels: 1 x High-Pass: 100 Hz |
| Solo/Mute | Solo per Input Channel Mute per Input Channel, Bus, FX Bus, Master |
| Channel Output/Source Monitoring | None |
| Internal Effects | None |
Digital Audio
| Sample Rates | 96 kHz |
| DSP | None |
| Word Clock Input | None |
Connectivity
| Analog Inputs | 18 x XLR 3-Pin Balanced Mic Input 14 x 1/4" TRS Balanced/Unbalanced Line Input 4 x 1/4" TRS Unbalanced Line Insert 2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input 10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs) 1 x 1/4" TRS Footswitch Input |
| Analog Outputs | 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output 1 x 1/4" TRS Balanced/Unbalanced FX Send |
| Phantom Power | +48 V (Applied to All Inputs) |
| USB | 1 x USB Type-B (Audio Playback, Host Connection, Recording) |
| Wireless Connectivity | Bluetooth |
Recording
| Max Multitrack Recording | 24 Tracks |
| Media Support | SD |
Compatibility
| OS Compatibility | Not Specified by Manufacturer |
Power
| AC Power Connector | 1 x IEC Input |
| Power Consumption | 55 W |
Physical
| Rack Mountable | No |
| Dimensions | 25.2 x 14 x 4.5" / 640.1 x 355.6 x 114.3Ā mm |
| Weight | 21.5Ā lb / 9.8Ā kg |
