Length: 290 mm (11.5 in.)Width: 187 mm (7.4 in.)Height: 416 mm (16.4 in.)Weight: 9 kg (19.9 lbs.)
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackoutElectronic dimming: 0 - 100%, four dimming curve optionsColor wheel 1: 8 colors plus open, rotation with variable direction and speedColor wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speedRotating gobo wheel: 6 gobos plus open, wheel rotation and gobo rotationStatic gobo wheel: 7 gobos plus open, wheel rotation and shakePrism: Indexing and rotation with variable direction and speedPan: 540°Tilt: 270°Pan and tilt speed: Adjustable via onboard control panel and DMXFocus: Motorized
Control options: DMX, stand-aloneSetting and addressing: Control panel with backlit LCD displayDMX channels: 16Standalone trigger options: Music trig, auto trigStandalone sequences: 4 pre-programmed showsMusic trig sensitivity: AdjustableProtocol: USITT DMX512/1990
Light source: 75 W LED engineBeam angle: 16° (one-tenth peak), 14° (half-peak)Minimum LED lifetime: 50,000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions.
Housing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20
Rotating gobo size: 24 mm (0.94 in.)Rotating gobo image size: 20 mm (0.79 in.)
Mounting: One quarter-turn bracket for rigging clampLocation: Indoor use only, must be fastened to surface or structureOrientation: Any
AC power in, thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR
AC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 165 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
100 V, 60 Hz: 1.7 A, 165 W230 V, 50 Hz: 0.8 A, 157 WMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Cooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 565 BTU/hr. (at full intensity, full white)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
Power cable, 1.5 m, without mains plug
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Martin™ RDM 5.5 Splitter: P/N 90758150Martin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

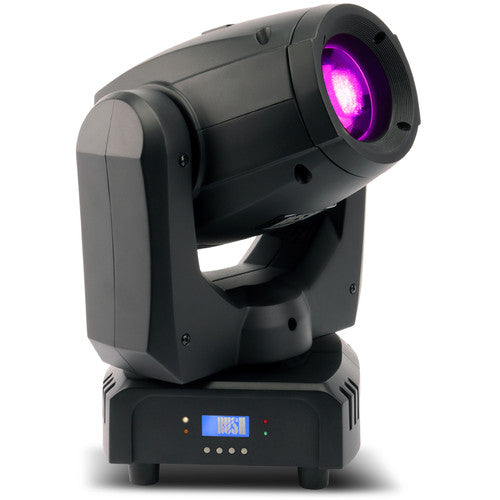

RUSH MH 5 Profile™ in cardboard box: P/N 90280040
