Description
- 1100 W Class D Amplifier
- 90 x 60 constant directivity coverage angle
- 15" neo woofer, 3.5" voice coil
- 1.5 " neo c. driver, 4.0" voice coil
- DSP Processing
- Onboard RDNet Control
- Multifunctional cabinet
- Very high output

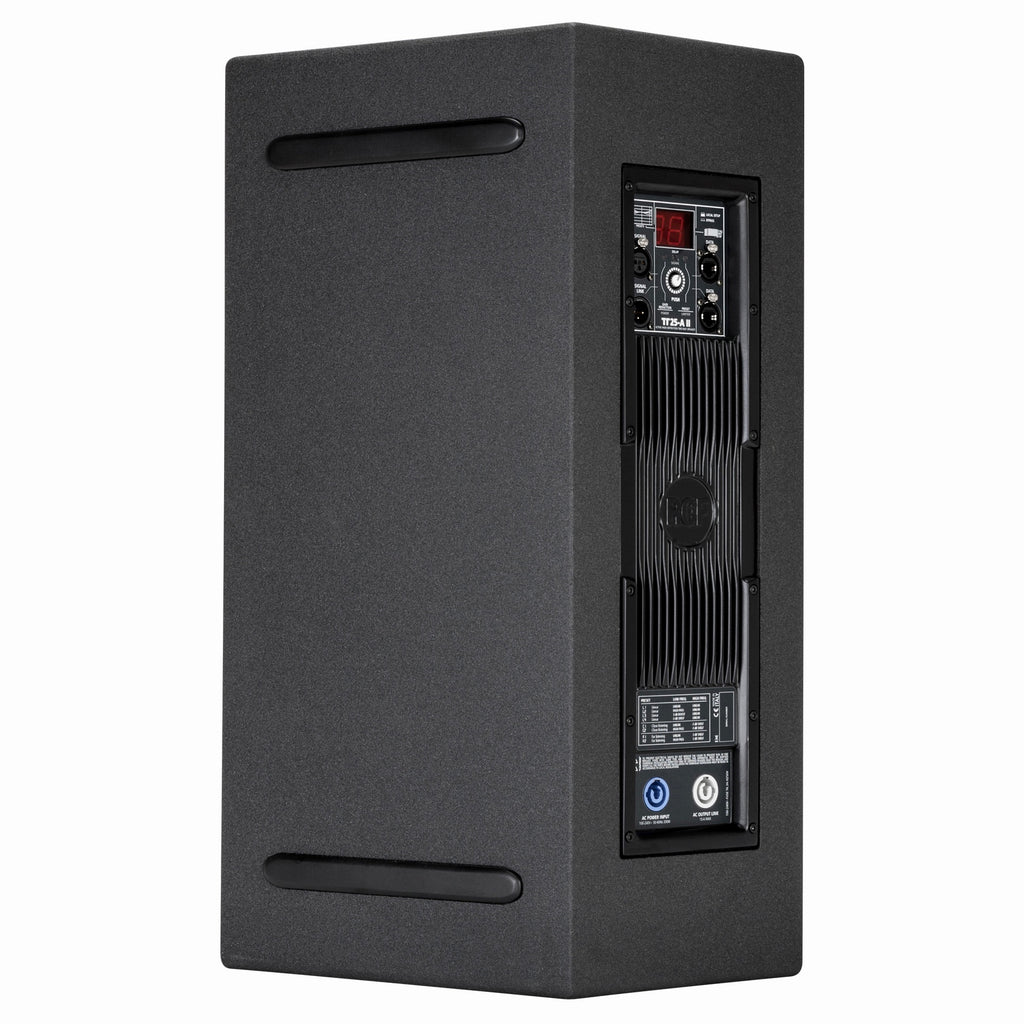

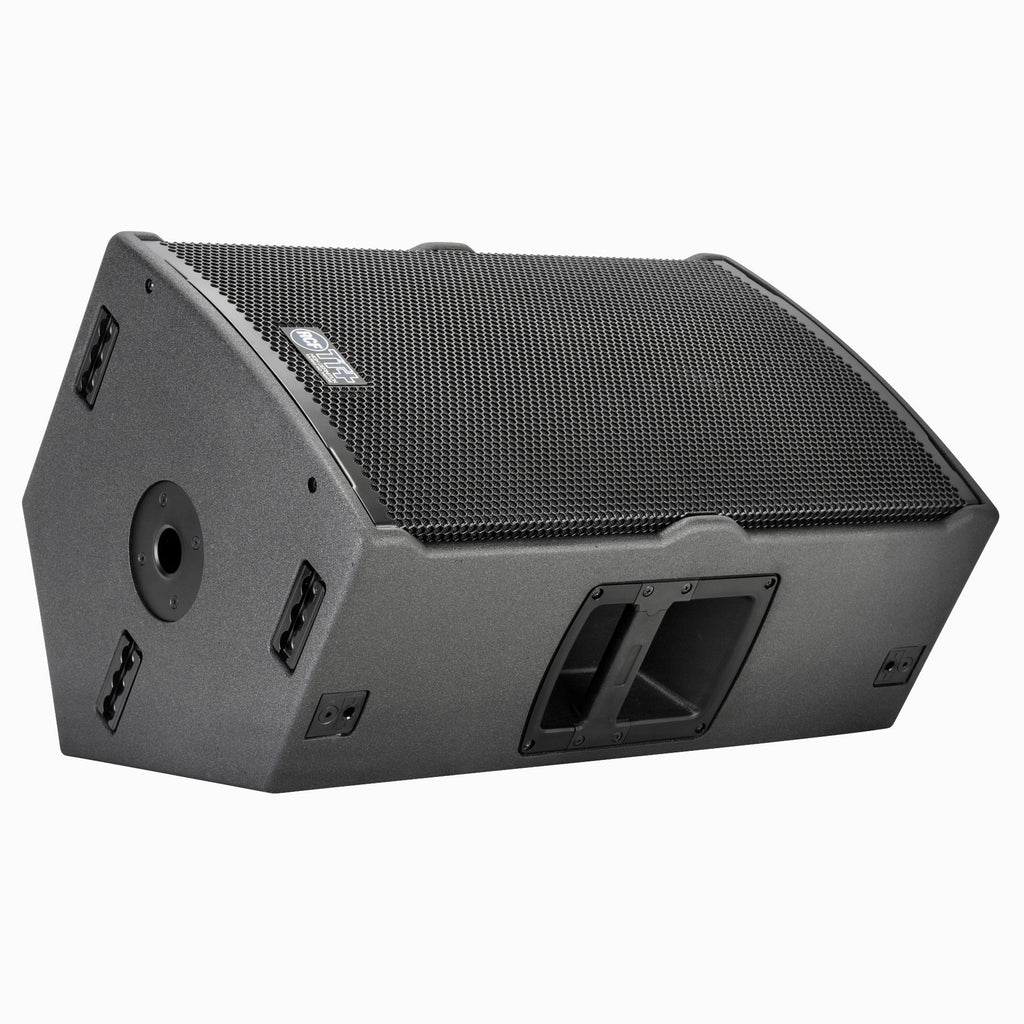

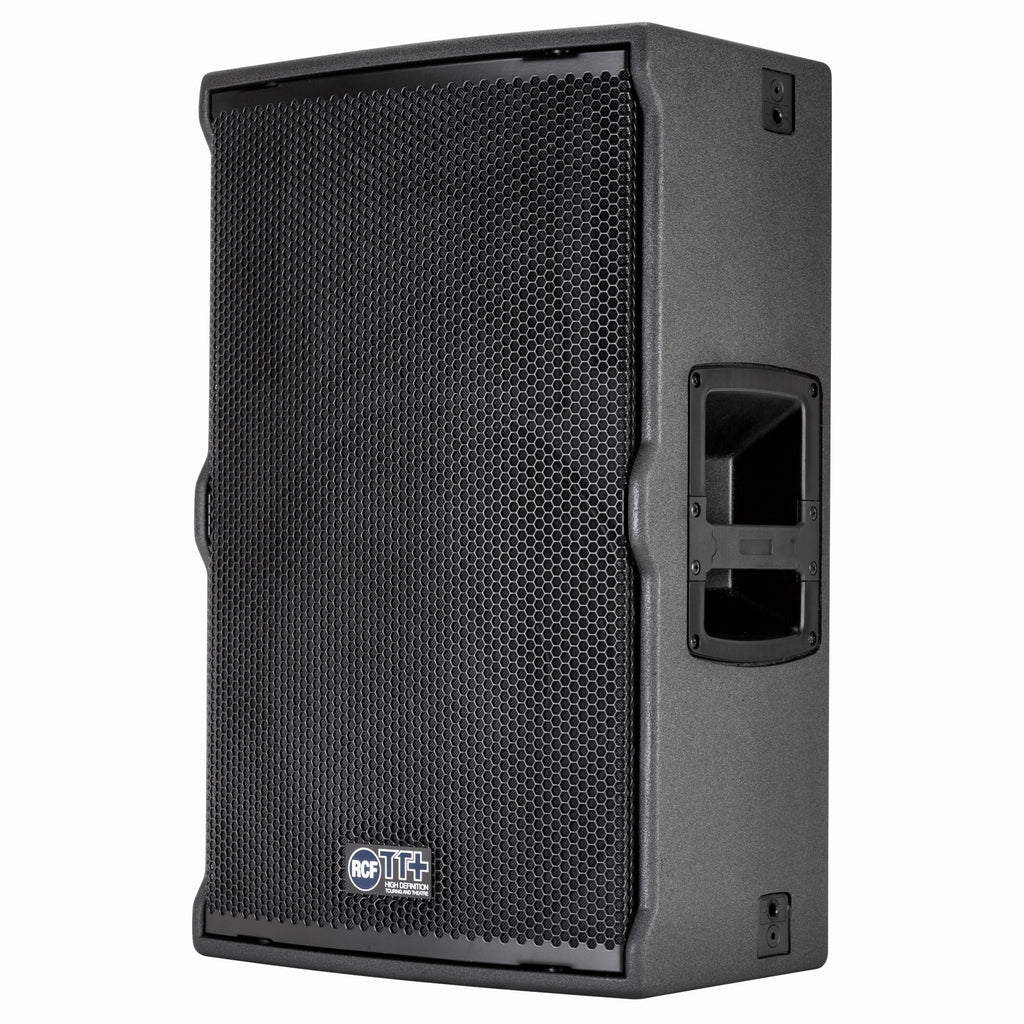

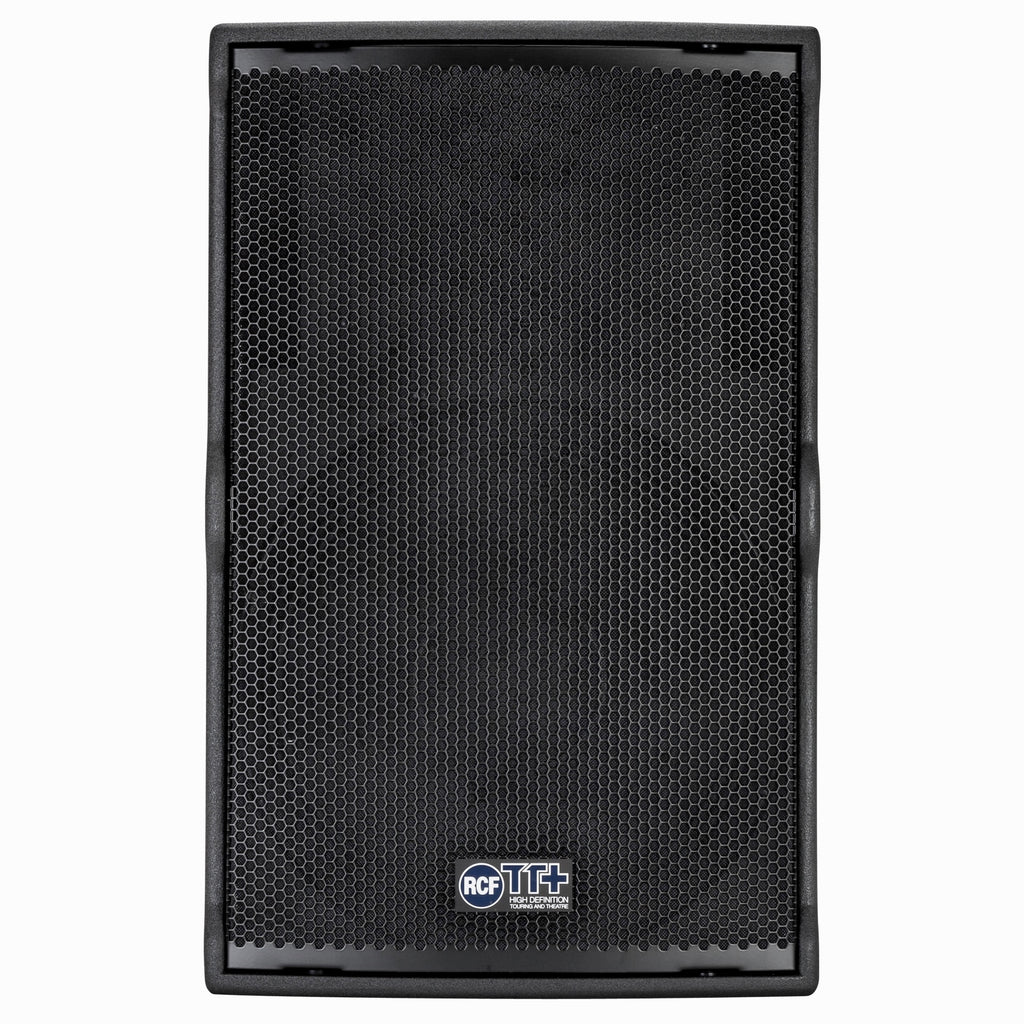

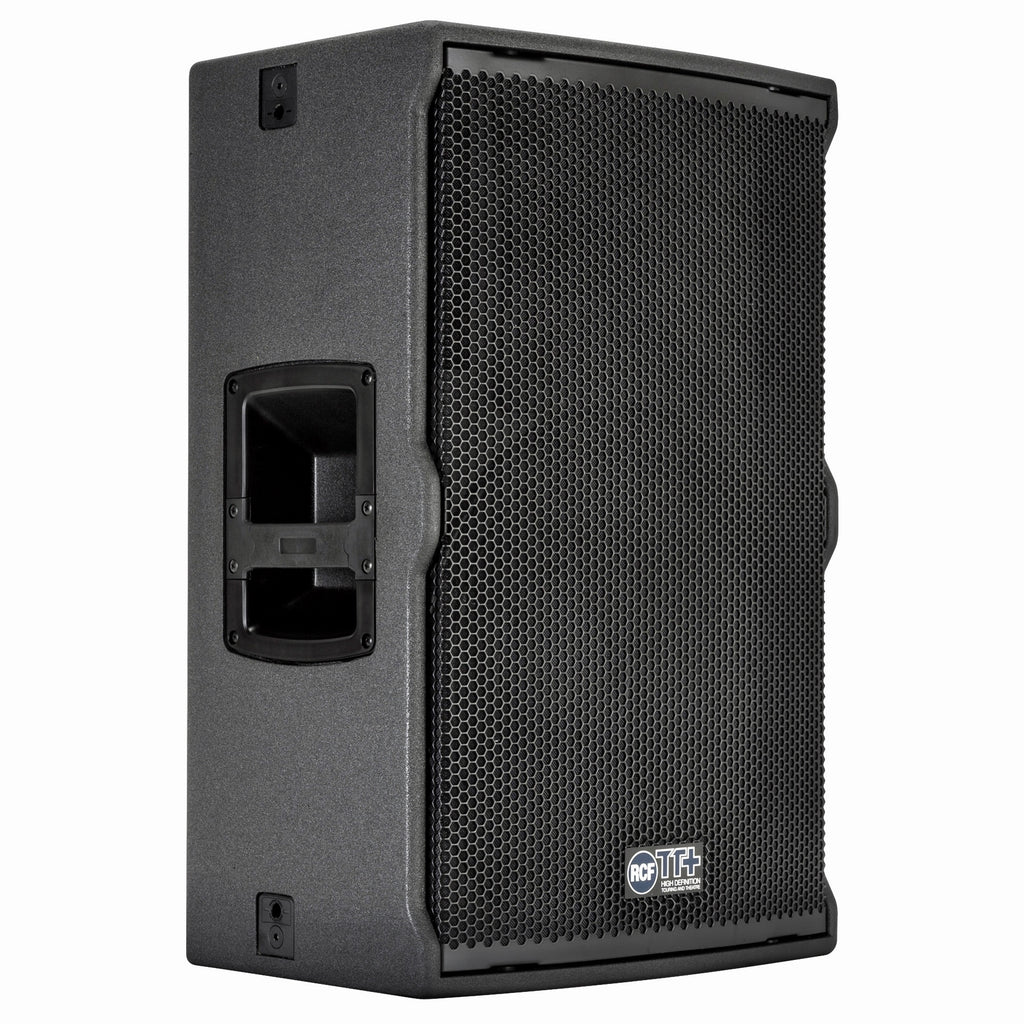

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size. TT25-A II is a 2-way active system featuring a 15” neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5” exit, 100 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating. The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and
events.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz
MAX SPL @ 1M:
134 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.5'' neo, 4.0'' v.c
WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
750 Hz
PROTECTIONS:
Thermal, HF
LIMITER:
Fast Limiter
CONTROLS:
Proces., 8 sel. presets
RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1600 W Peak, 800 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
6xfly track, quick lock, pole mount
HANDLES:
2 on side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
670 mm / 26.38 inches
WIDTH:
425 mm / 16.73 inches
DEPTH:
425 mm / 16.73 inches
WEIGHT:
26 kg / 57.32 lbs
Shipping informations
PACKAGE HEIGHT:
715 mm / 28.15 inches
PACKAGE WIDTH:
470 mm / 18.5 inches
PACKAGE DEPTH:
