Description
- 2000 Watt Peak power - 1000 Watt RMS
- 133 dB max SPL
- 40 Hz - 140 Hz frequency response

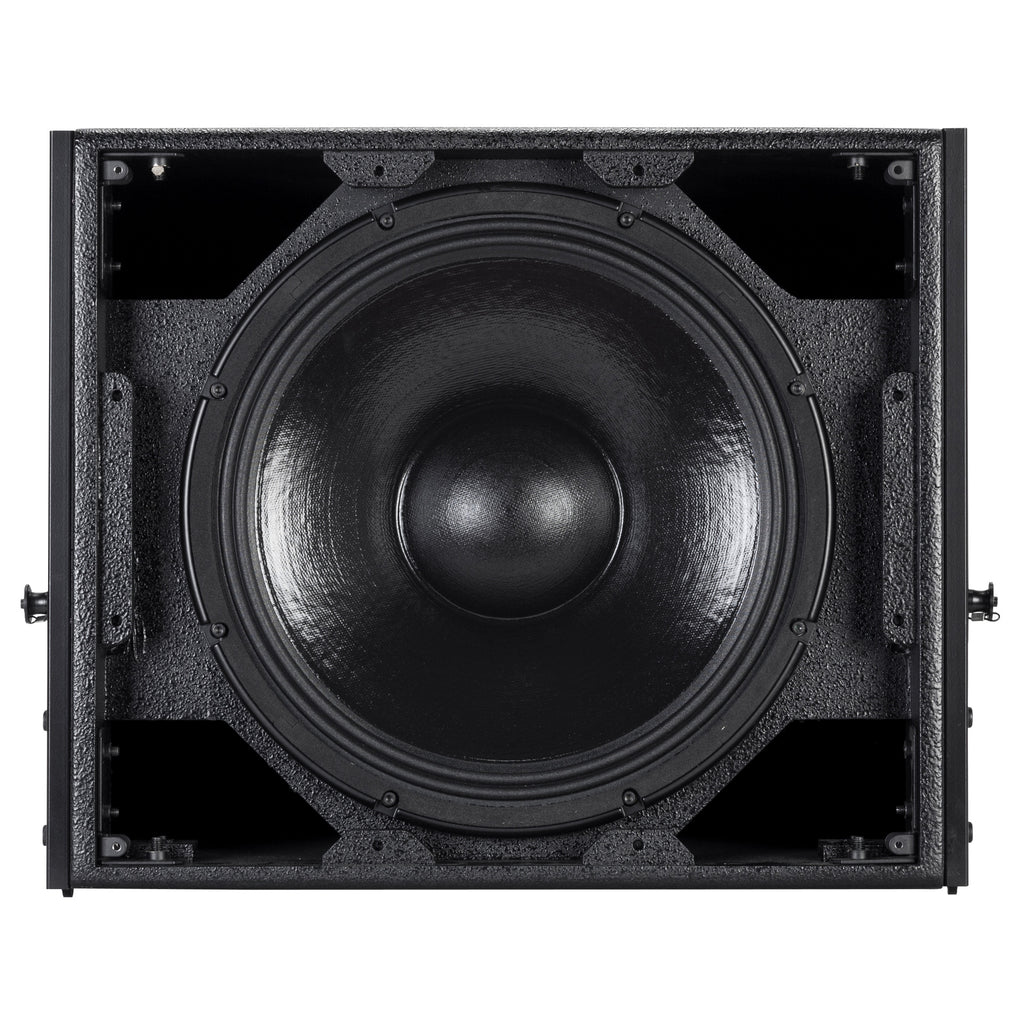

- 1 x 15" Woofer, 3.5" v.c.
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics, compatible with HDL 10-A
- Designed to compliment the HDL 10-A speaker system
- Baltic birch tour grade cabinet

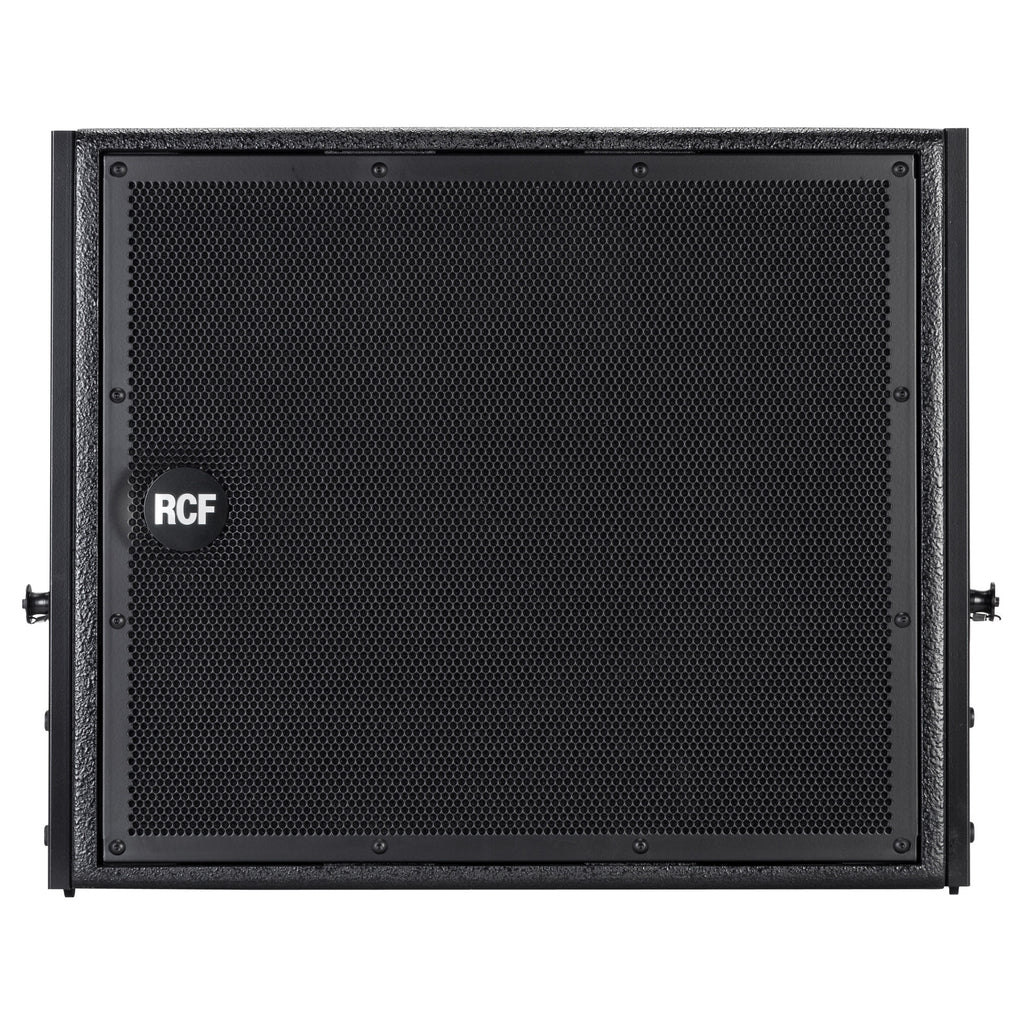

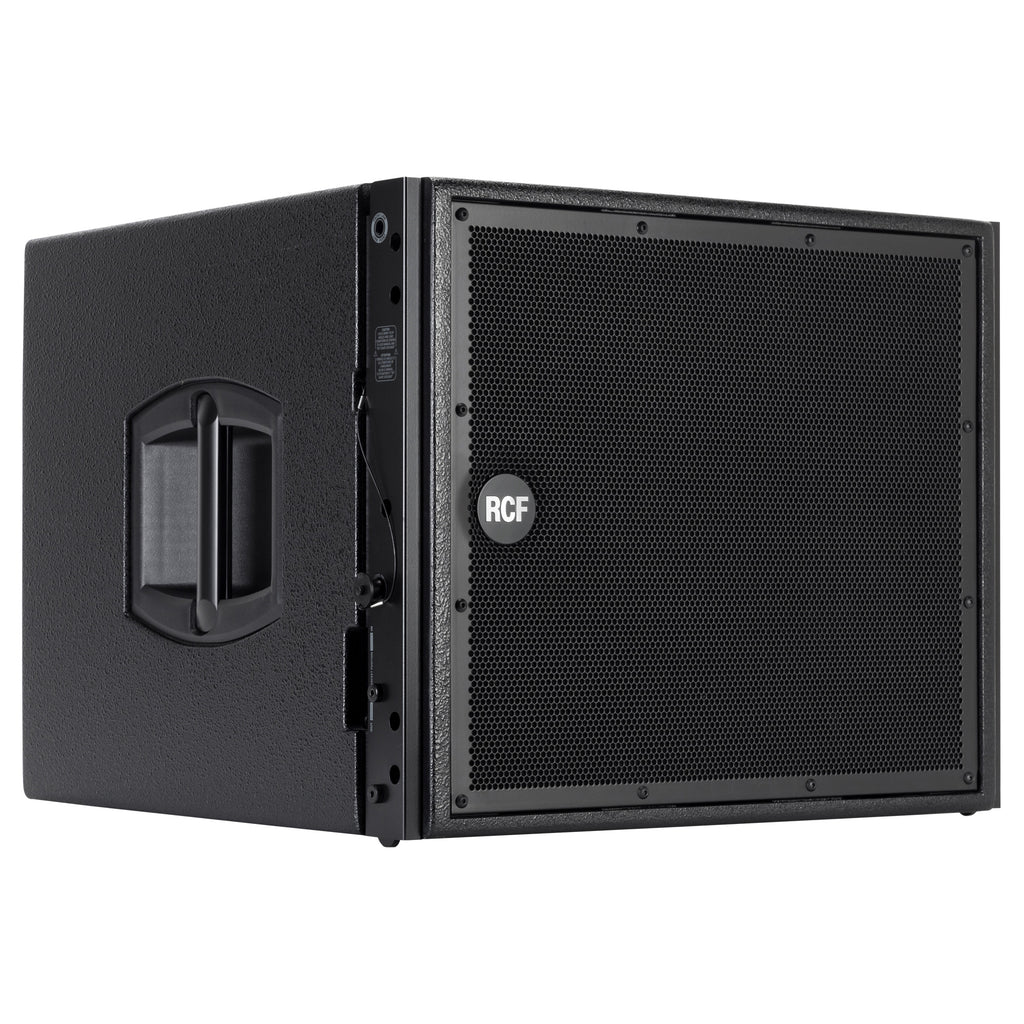

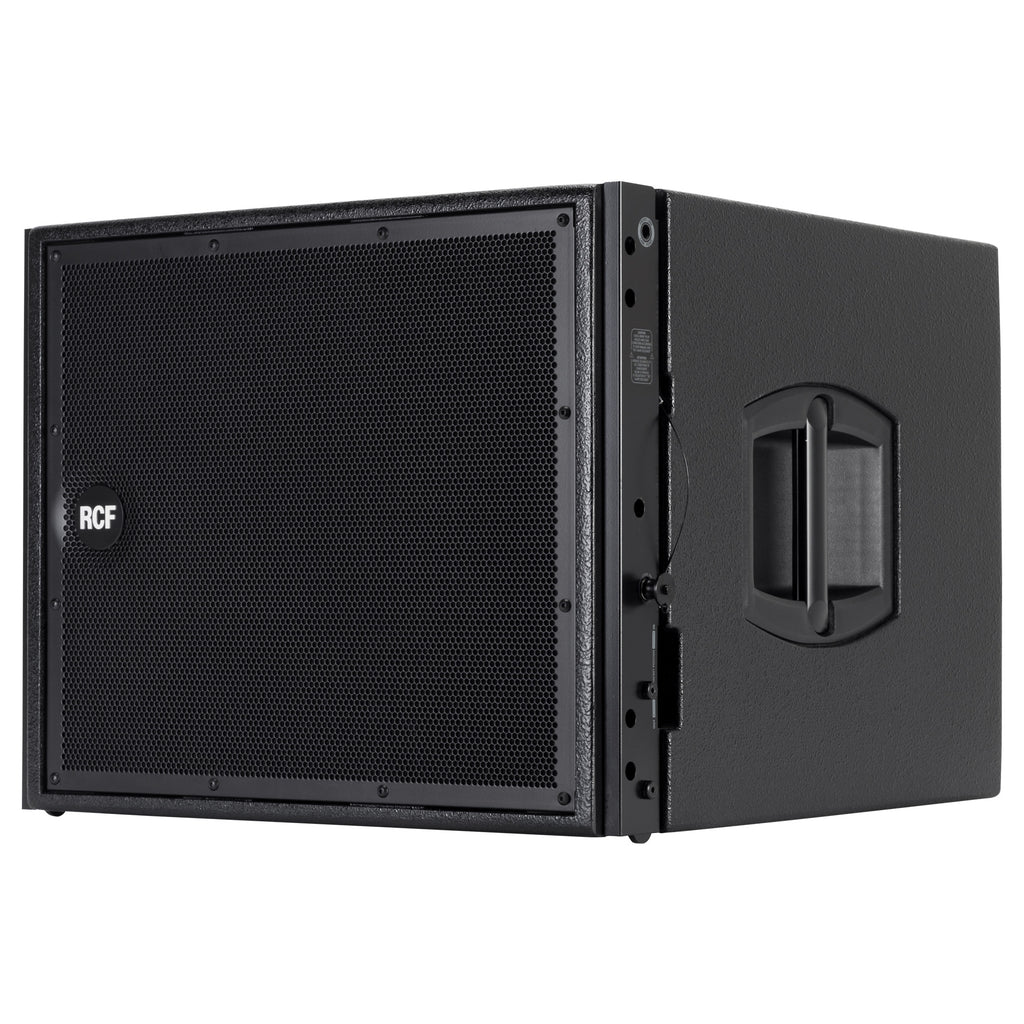

The HDL15-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 10-A flown array. The bass reflex design guarantees a deep, linear power response while the 3.5” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 10-A array module.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 140 Hz
MAX SPL @ 1M:
133 dB
Transducers
WOOFER:
15'', 3.5'' v.c

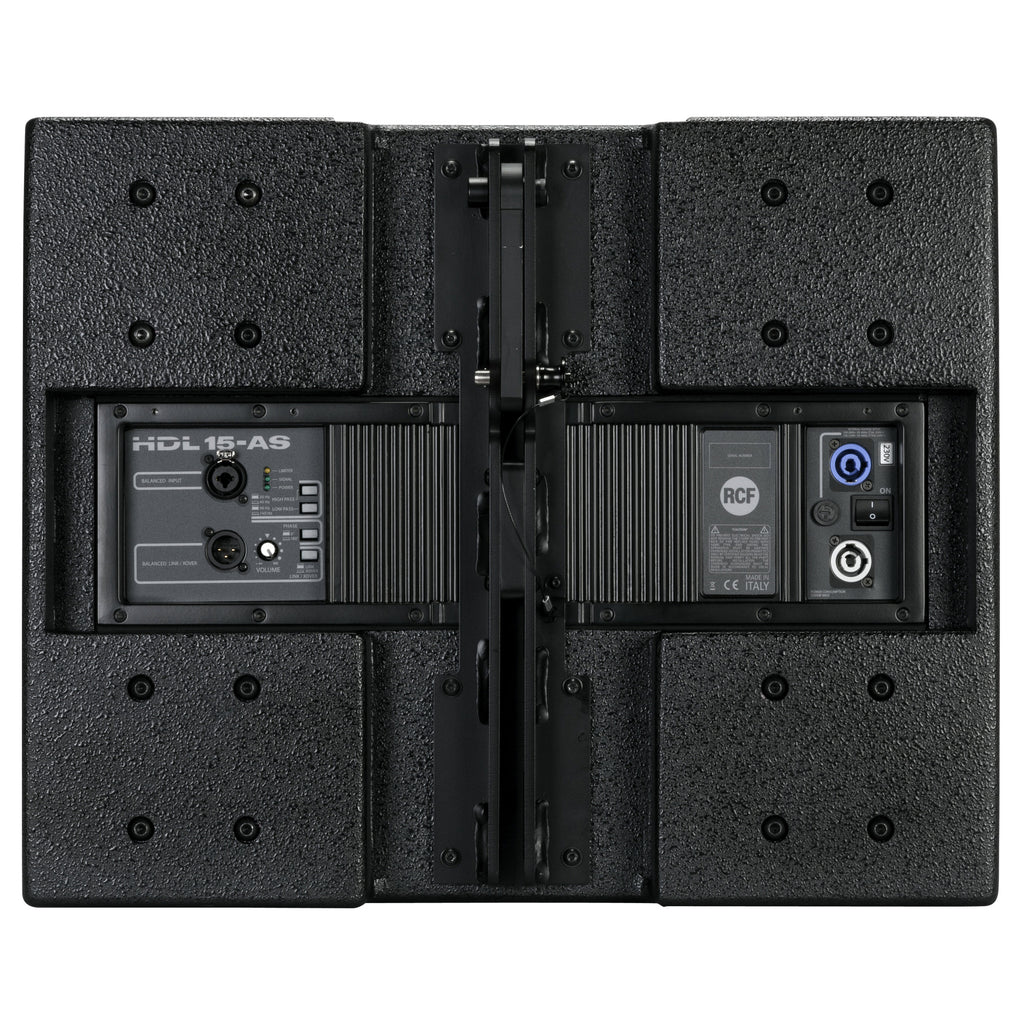

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
30Hz, 45Hz
LOW-PASS FREQUENCIES:
90Hz,140Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, EQ Shape, Xover
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
2000 W Peak, 1000 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Rigging flyware, M20 insert
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
458 mm / 18.03 inches
WIDTH:
555 mm / 21.85 inches
DEPTH:
569 mm / 22.4 inches
WEIGHT:
39 kg / 85.98 lbs
Shipping informations
PACKAGE HEIGHT:
610 mm / 24.02 inches
PACKAGE WIDTH:
660 mm / 25.98 inches
PACKAGE DEPTH:
675 mm / 26.57 inches
PACKAGE WEIGHT:
44 kg / 97 lbs
